The minimum saturated suction temperature of the conventional single stage screw compressor is -40~-50 °C. If you want evaporate temperature at -60~-65°C，you need multi unit of single stage compressors. Meanwhile, the high pressure ratio working condition brings problems such as excessive leakage and high discharge temperature during compression, which results in low reliability and low efficiency for the single-stage compressor operating in such harsh conditions.
While the compound two-stage compressor well solves above problems. Compared to the two-stage compressors and multi unit of single stage compressors, the compound two-stage compressors occupy less space and the system is easy to control, so it's more efficiency and reliable.

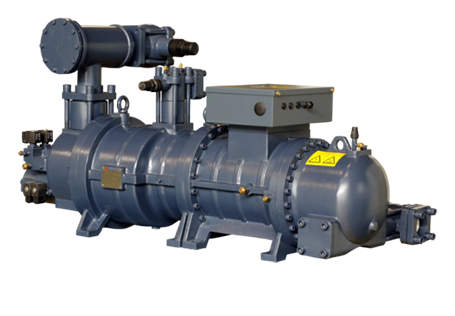

For above reasons, Shanghai Hanbell Precise Machinery Co., Ltd. specialized in the development of LT series two-stage screw refrigeration compressors which is composed of two types: the semi-hermetic type (-S) and open type (-G). They can be used in the field of low temperature refrigeration and high temperature heat pump according to the application. High efficiency and reliability under big pressure difference and compression ratio working condition is the main demand in design. It is a product of elite which accumulates Shanghai Hanbell's rich technology and extensive application experience. LT can be widely used in low temperature frozen products, frozen tunnels, freezers, process cooling, pharmaceutical biochemistry, high temperature hot water, central heating and many other industries.
Product Information
Click here for more information
Starting load
Light starting load design，starting load is equivalent to ordinary single-stage compressor, avoiding greater impact on the power grid
Motor cooling channel
The excellent motor cooling flow channel design ensures reliable cooling of the motor and high efficiency of the compressor, so that the compressor can operate in a very wide range and more adaptable.
Motor temperature visualization
Motor embedded temperature sensor; NTC, which can directly read motor temperature for motor temperature control and protection
System component integration design
Equipped with medium pressure check valve, shut-off valve and economizer filter, it makes the protection system of the compressor reliable and simplifies customer system configuration
Junction box never frosts
The junction box of the LT compressor is arranged in the middle temperature zone, even if it is operated at -65 °C for a long time, there will be no frosting.
Simple system control
Logical control is simpler and reduces control costs.
Wider range of applications
Compared to the LT-S Series, the LT-S-L Series have a wider operating range and can meet the needs of unfrozen freezer, quick-freezing tunnels and industrial refrigeration applications.
Model | Compressor | ||||||||||||||
Low pressure | High pressure | Rotation speed 50Hz r/min | Capacity control | Lubrication method | Noise | ||||||||||
Displacement | Displacement | ||||||||||||||
Low temperature freezing LT-S | Refrigerated + quick frozen LT-S-L | ||||||||||||||
50Hz | 50Hz | ||||||||||||||
m3/h | m3/h | Step | Stepless | dB | |||||||||||
LT-20/10 | 224 | 99 | 2950 | 10%/50% | 10% | Pressure differential oil supply | 80 | 81 | |||||||
LT-30/12 | 316 | 137 | 81 | / | |||||||||||
LT-45/20 | 450 | 207 | 83 | 84 | |||||||||||
LT-55/25 | 551 | 257 | 84 | 85 | |||||||||||
LT-65/32 | 651 | 313 | 10%/50% | 86 | 88 | ||||||||||
LT-83/41 | 840 | 396 | 87 | 89 | |||||||||||
Model | Quality | Motor | Strength test | ||||||||||||
Type | Starting type | Voltage | Insulation grade | Protection | |||||||||||
Kg | bar | ||||||||||||||
Low temperature freezing LT-S | Refrigerated + quick frozen LT-S-L | Low temperature freezing LT-S | Refrigerated + quick frozen LT-S-L | ||||||||||||
LT-20/10 | 598 | 620 | 3-phase 2-pole induction Squirrel-Cage Motor | star-delta starter | 380 | F Level | PTC+ (NTC Optional) | 35 | |||||||
LT-30/12 | 620 | / | |||||||||||||
LT-45/20 | 1158 | 1200 | |||||||||||||
LT-55/25 | 1195 | 1230 | |||||||||||||
LT-65/32 | 1395 | 1450 | |||||||||||||
LT-83/41 | 1430 | 1490 | |||||||||||||
